今天想分享我用 Rassberry PI5 架 ACS Server，如果你知道 ACS Server 是甚麼，可以看我如何架。ACS Auto Configure server，類似遠端的工具可以看到你的通訊產品的狀況如上線時間，reboot,更新 FW 等等

Note:

For English Note please refer to my github note link

Raspberry PI Model

Check Ubuntu Version

1
lsb_release -a

Check Kernel

1
uname -ar

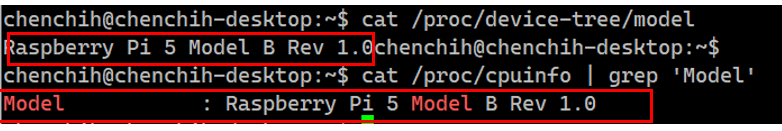

check Raspberry Model

1
2
3
cat /proc/device-tree/model
#or
cat /proc/cpuinfo | grep 'Model'

Check CPU type

1
lscpu

Install Genie ACS

我有寫自動化可以自行幫你架，如果有興趣可以到這連結.

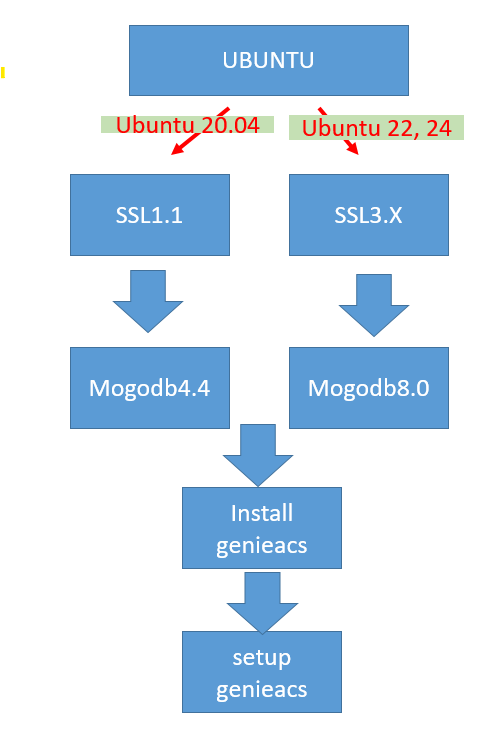

這是整個架構圖

Note:

以下我都是以ubuntu 24.04/25.04 為主，但如果你是用20.04我下面會提示說明他是20.04

Download and Install nodejs

1
2
3
4
curl -sL https://deb.nodesource.com/setup_14.x -o nodesource_setup.sh
sudo bash nodesource_setup.sh
sudo apt install nodejs
node -v

MongoDB

MogoDB GPG Key

1
2
3
4
5
6
#update
sudo apt update
#install curl
sudo apt install gnupg curl -y
#use curl to download MongoDB
curl -fsSL https://www.mongodb.org/static/pgp/server-8.0.asc | \ sudo gpg -o /usr/share/keyrings/mongodb-server-8.0.gpg \ --dearmor

Mongodb 下載

1
2
3
4
#add the url into sources.list
echo "deb [ arch=amd64,arm64 signed-by=/usr/share/keyrings/mongodb-server-8.0.gpg ] https://repo.mongodb.org/apt/ubuntu jammy/mongodb-org/8.0 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-8.0.list
#update
sudo apt update

Note:

如果是20.04 請用下面方式因為是SSL1.1

1
2
3
4
5
6
sudo apt update
sudo apt install mongodb-org
sudo systemctl start mongod.service
sudo systemctl status mongod
sudo systemctl enable mongod
mongo --eval 'db.runCommand({ connectionStatus: 1 })'

安裝 mogodb

1
2
# Install MongoDB
sudo apt install -y mongodb-org

啟動 mongod

1
2
3
4
# Start and Enable the MongoDB Service
sudo systemctl start mongod
sudo systemctl enable mongod
sudo systemctl status mongod

GenieACS

一下是修改genieacs檔案

下載/安裝

1
2
3
4
5
6
7
8
9
sudo apt update
sudo apt install nodejs npm

sudo npm install -g genieacs@1.2.13
sudo useradd --system --no-create-home --user-group genieacs

mkdir /opt/genieacs
mkdir /opt/genieacs/ext
chown genieacs:genieacs /opt/genieacs/ext

GenieACS設定

genieacs.env

請修改 genieacs檔: vi /opt/genieacs/genieacs.env

1
2
3
4
5
6
7
GENIEACS_CWMP_ACCESS_LOG_FILE=/var/log/genieacs/genieacs-cwmp-access.log
GENIEACS_NBI_ACCESS_LOG_FILE=/var/log/genieacs/genieacs-nbi-access.log
GENIEACS_FS_ACCESS_LOG_FILE=/var/log/genieacs/genieacs-fs-access.log
GENIEACS_UI_ACCESS_LOG_FILE=/var/log/genieacs/genieacs-ui-access.log
GENIEACS_DEBUG_FILE=/var/log/genieacs/genieacs-debug.yaml
NODE_OPTIONS=--enable-source-maps
GENIEACS_EXT_DIR=/opt/genieacs/ext

修改權限

1
2
sudo chown genieacs:genieacs /opt/genieacs/genieacs.env
sudo chmod 600 /opt/genieacs/genieacs.env

加jwt secret

如果你沒有加上 jwt secret 會出現在下面問題:

1
node -e "console.log(\"GENIEACS_UI_JWT_SECRET=\" + require('crypto').randomBytes(128).toString('hex'))" >> /opt/genieacs/genieacs.env

建立log 資料夾

1
2
mkdir /var/log/genieacs
chown genieacs:genieacs /var/log/genieacs

修改 genieacs systemd unit

genieacs-cwmp

看檔案在哪: which genieacs-cwmp

修改檔案: sudo systemctl edit --force --full genieacs-cwmp

1
2
3
4
5
6
7
8
9
10
11
[Unit]
Description=GenieACS CWMP
After=network.target

[Service]
User=genieacs
EnvironmentFile=/opt/genieacs/genieacs.env
ExecStart=/usr/local/bin/genieacs-cwmp

[Install]
WantedBy=default.target

Note:

如果 Ubuntu 20.04 修改成

1
ExecStart=/usr/bin/genieacs-cwmp

genieacs-fs

看檔案在哪: which genieacs-fs

修改檔案: sudo systemctl edit --force --full genieacs-fs

1
2
3
4
5
6
7
8
9
10
11
[Unit]
Description=GenieACS FS
After=network.target

[Service]
User=genieacs
EnvironmentFile=/opt/genieacs/genieacs.env
ExecStart =/usr/local/bin/genieacs-fs

[Install]
WantedBy=default.target

Note:

如果 Ubuntu 20.04 修改成

1
ExecStart=/usr/bin/genieacs-fs

genieacs-ui

看檔案在哪: which genieacs-ui

修改檔案: sudo systemctl edit --force --full genieacs-ui

1
2
3
4
5
6
7
8
9
10
11
[Unit]
Description=GenieACS UI
After=network.target

[Service]
User=genieacs
EnvironmentFile=/opt/genieacs/genieacs.env
ExecStart=/usr/local/bin/genieacs-ui

[Install]
WantedBy=default.target

Note:

如果 Ubuntu 20.04 修改成

1
ExecStart=/usr/bin/genieacs-ui

logroate

修改檔案: nano /etc/logrotate.d/genieacs

1
2
3
4
5
6
7
/var/log/genieacs/*.log /var/log/genieacs/*.yaml {
    daily
    rotate 30
    compress
    delaycompress
    dateext
}

啟動服務

設定做完可以啟動服務看有沒有問題

  • 啟動服務
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    sudo systemctl enable genieacs-cwmp
    sudo systemctl start genieacs-cwmp
    sudo systemctl status genieacs-cwmp

    sudo systemctl enable genieacs-nbi
    sudo systemctl start genieacs-nbi
    sudo systemctl status genieacs-nbi

    sudo systemctl enable genieacs-fs
    sudo systemctl start genieacs-fs
    sudo systemctl status genieacs-fs

    sudo systemctl enable genieacs-ui
    sudo systemctl start genieacs-ui
    sudo systemctl status genieacs-ui

CPE設定ACS

GenieACS 網頁啟動

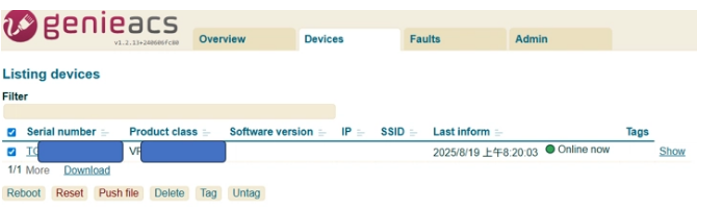

如果上面沒問題可以開啟網頁 http://127.0.0.1:3000 或 http://<本地IP>:3000 就會出現genieacs網頁，請點如圖連結來啟動她

CPE 註冊ACS server

每加CPE用指令位置不一樣，就類似下面這樣。

1
2
3
setvalue Device.ManagementServer.URL="http://172.21.201.111:7547"
setvalue Device.ManagementServer.ConnectionRequestUsername="admin"
setvalue Device.ManagementServer.ConnectionRequestPassword="admin"

FW 升級設定

我們可以透過ACS做升級，但需要做一些設定如如下

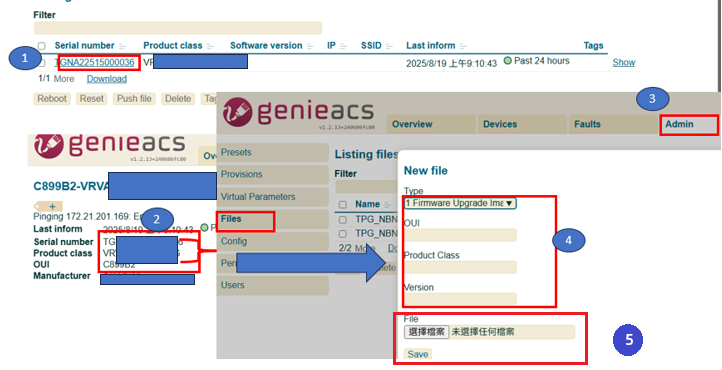

加入image 設定

  • Step 1: 點去Devices
  • Step 2: 檢查 CPE 的 OUI, Product Class 複製
  • Step 3: 點進 Admin
  • Step 4: 選 Files，選1.Firmware Upgrade Image 把剛剛複製的資訊把它輸入或貼上去
  • Step 5: 上傳你要的image上去

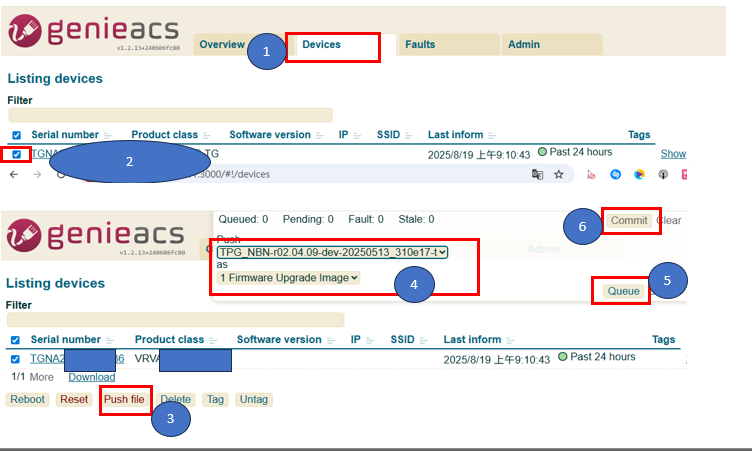

ACS 升級CPEFW

上面有做FW設定，現在我們可以做CPE升級

  • Step 1: 點去Devices
  • Step 2: 勾選取你要生的CPE
  • Step 3: 點push
  • Step 4: 選取你要升的image
  • Step 5: 點 queue 再點 commit

可以看下面圖片:
